TEW-691GR 450Mbps Wireless N Gigabit Router

Be the first to review this product

Availability: In stock

$102.00

Quick Overview

  • Eye popping 450Mbps wireless speed and coverage
  • Gigabit Ethernet ports for high performance wired connections
  • Stream video, download files, talk online, and play games all at the same time
  • Connect computers with one-touch Wi-Fi Protected Setup (WPS)


TEW-691GR 450Mbps Wireless N Gigabit Router

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

  • TEW-691GR 450Mbps Wireless N Gigabit Router
  • TEW-691GR 450Mbps Wireless N Gigabit Router
  • TEW-691GR 450Mbps Wireless N Gigabit Router
  • TEW-691GR 450Mbps Wireless N Gigabit Router
  • TEW-691GR 450Mbps Wireless N Gigabit Router
  • TEW-691GR 450Mbps Wireless N Gigabit Router

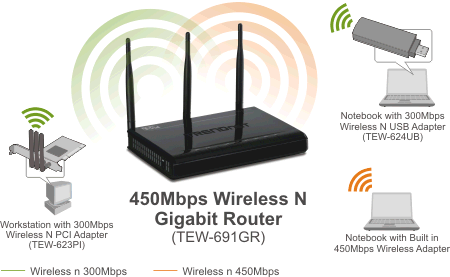

TRENDnet’s 450Mbps Wireless N Gigabit Router, model TEW-691GR, redefines wireless router performance. This router’s raw horsepower seamlessly streams HD movies to your entertainment center, transfers content from countless users, and generates record wireless coverage.

Gigabit Wide Area Network and Local Area Network ports transfer wired data fast. Embedded GREENnet technology reduces power consumption.

Advanced Multiple Input Multiple Output (MIMO) antenna technology with three spatial streams per antenna generates a maximum theoretical wireless throughput of 450Mbps. Wi-Fi Protected Setup (WPS) integrates other WPS supported wireless adapters at the touch of a button. The latest in wireless encryption and a secure firewall protect your digital network. WMM® Quality of Service (QoS) technology prioritizes gaming, Internet calls, and video streams. LEDs on the front of the router convey device status.



RoHS Compliant

Networking Solution

TEW-691GR

Part Number TEW-691GR
Manufacturer TrendNet
Model No. TEW-691GR
Types Routers

Use spaces to separate tags. Use single quotes (') for phrases.

Hardware
Standards
  • Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX), IEEE 802.3ab (1000Base-T)
  • Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
LAN 4 x 10/100/1000Mbps Auto-MDIX port
WAN 1 x 10/100/1000Mbps Auto-MDIX port
WPS Button Wi-Fi Protected Setup (WPS) connects with other WPS compliant devices
WDS Enable/disable Wireless Distribution System support
LED Indicator Power, WLAN, LAN, WPS
Power Adapter 12V DC, 1A external power adapter
Power Consumption 450mA (max.)
Dimension (L x W x H) 148x 180 x 32mm (6.2 x 7.1 x 1.0in.)
Weight 289g (10 oz)
Temperature Operation: 0°~ 40°C (32°F~ 104°F)
Storage: -20°~ 60°C (-4°F~140 °F)
Humidity Max. 90% (non-condensing)
Certifications CE, FCC
Wireless
Frequency 2.412 ~ 2.472 GHz
Antenna 3 x 4dBi fixed dipole antennas
Modulation OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DBPSK, DQPSK, CCK
Data Rate
  • 802.11b: up to 11Mbps
  • 802.11g: up to 54Mbps
  • 802.11n: up to 450Mbps
Security 64/128-bit WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS
Multiple SSID
Access Control MAC Address Filter (Up to 24 entries)
Output Power
  • 802.11b: 11dBm (typical)
  • 802.11g: 15dBm (typical) 802.11n: 15dBm (typical)
Receiving Sensitivity
  • 802.11b: -84dBm (typical)
  • 802.11g: -72dBm (typical)
  • 802.11n: -69dBm (typical)
Channels 2.4GHz : 1~11 (FCC), 1~13 (ETSI)
